Photoelectric (Opto) Sensors
|
|
Rhomberg photoelectric sensors must be interfaced with the Rhomberg SC410 monitoring relay to operate. This enables the unit to be powered from 240VAC but to switch a potential-free 10A C/O relay contact when the infra-red beam is broken. They are available in combined transmitter/receiver or separate transmitter & receiver formats.
|
|
|
|
|
RO2
| |
Photoelectric (Opto-electronic) Sensors.
|
|
For use with Rhomberg SC410 relays
|
|
| |
Features
- Separate transmitters and receivers, or transmitter & receiver in one unit
- Interface directly to optional Rhomberg monitoring relay SC410.
- Target or space sensing
|
| |
Data Sheet
|
Product Comparison |
Search |
Top
|
|
|
|
RO4
| |
Opto-electronic Fork Sensor
|
|
Edge detection, mark detection on packaging lines
|
|
| |
Features
- Supply voltage 10-30VDC
- Maximum load current: 400mA
- High switching frequency (10kHz max) - suitable for high speed packaging lines
- Adjustable beam strength to ensure reliable switching via internal or external potentiometer.
|
| |
Data Sheet
More Info
|
|
Product Comparison |
Search |
Top
|
|
|
|

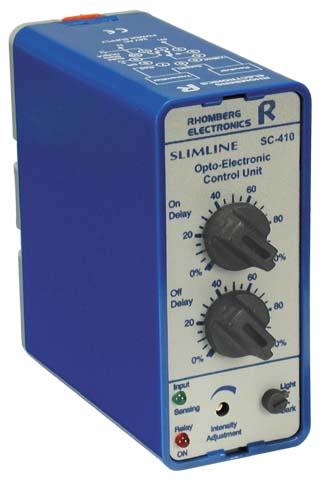

SC410
| |
Opto-electronic Control Relay for Rhomberg RO2 Photo-electric sensors
|
|
Proximity or Barrier Infra-red sensing and switching
|
|
| |
Features
- 11-pin plug-in.
- Direct interface with Rhomberg RO2 Photo-electric sensor range.
- Programmable: dark or light response.
- Adjustable: delayed ON up to 5s, delayed OFF up to 5s, transmit light intensity.
- Signal modulated beam to stop foreign light source interference.
- High speed solid state transistor output.
- Direct interface for solid state relays.
- 10A SPDT relay output
- Sensor or cable fault detection and indication.
- Requires optional S3-B 11-pin base.
|
| |
Data Sheet
More Info
Order Code
|
|
