Capacitive Proximity Switches
|
|
Rhomberg Capacitive proximity sensors, used to detect most materials, especially liquids, plastics and grains, are available in Namur, DC, NPN & PNP and AC formats. They are extremely robust and conform to international standards, making them suitable as replacements for most other brands. (Available with 2 metre moulded leads as standard or a plug as an option).
|
|
|
|
|

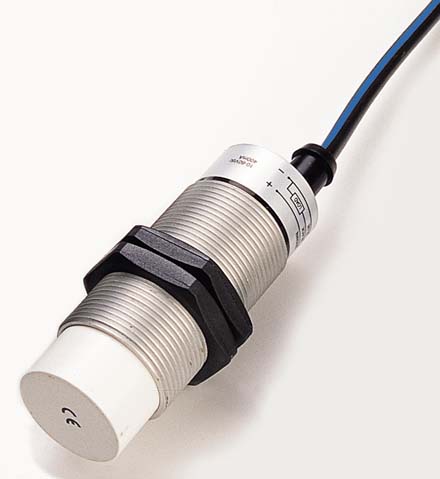

RC0
| |
Capacitive Proximity Switches (2 Wire), Namur DIN 19234.
|
|
Colour coding: blue wire
|
|
| |
Features
- Add -MTP to Part Numer for sensor with plug instead of cable (lead optional)
- 18 or 30 mm barrel sizes
- 2 wire Namur (DIN19234) interfaces to optional Namur amplifiers (refer Rhomberg SC230, SC300 or SC320 monitoring relays)
- Adjustable sensing distance
- IP67 protection
- Colour coding: blue = Namur
|
| |
Data Sheet
|
Product Comparison |
Search |
Top
|
|
|
|

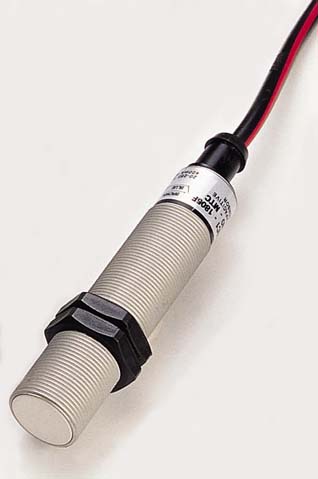

RC1
| |
Capacitive Proximity Switches (2 Wire), AC
|
|
Colour coding: red wire
|
|
| |
Features
- Add -MTP to Part Numer for sensor with plug instead of cable (lead optional)
- 18 or 30 mm barrel sizes
- 2 wire N/O or N/C
- 400mA rated output
- 20-250VAC power supply
- High speed switching
- IP67 protection
- High reliability in harsh environments
- Colour coding: red = AC
|
| |
Data Sheet
|
|
Product Comparison |
Search |
Top
|
|
|
|

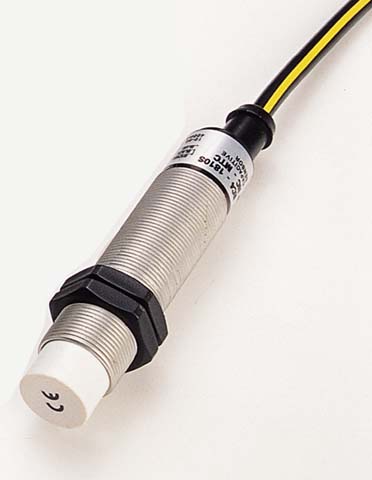

RC4
| |
Capacitive Proximity Switches DC PNP (3 Wire)
|
|
Colour coding: yellow wire
|
|
| |
Features
- Add -MTP to Part Numer for sensor with plug instead of cable (lead optional)
- 18 or 30 mm barrel sizes
- 3 wire PNP N/O or N/C
- 400mA rated PNP output
- 10-60VDC power supply
- IP67 protection
- Colour coding: yellow = PNP, red LED = N/O, green LED = N/C
|
| |
Data Sheet
|
|
Product Comparison |
Search |
Top
|
|
|
|

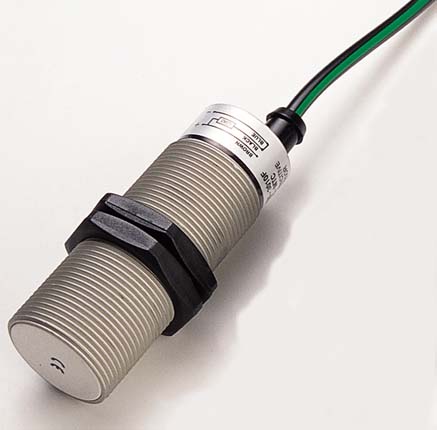

RC5
| |
Capacitive Proximity Switches DC NPN (3 Wire),
|
|
Colour coding: green wire
|
|
| |
Features
- Add -MTP to Part Numer for sensor with plug instead of cable (lead optional)
- 18 or 30 mm barrel sizes
- 3 wire NPN N/O or N/C
- 400mA rated PNP output
- 10-60VDC power supply
- IP67 protection
- Colour coding: green = PNP, red LED = N/O, green LED = N/C
|
| |
